UPN channel with tapered flanges is used throughout industrial machinery manufacturing, construction, vehicle components, architecture, Hardware, and bridges. the material of mild steel is easy to weld, cut, form, and machine with the proper equipment. UPN steel channel dimensions such as 80, 100,120 200 are popular standard sizes and huge volumes of demand in the market.
Grade | A36, Q235, Q355, S235JR, SS400 |
---|---|
Tolerance | 0-15% |
weight | Actual, Theoretical |
Length | 12m, 5.8m, 6m |
Delivery time | 15 days |
Loading port | Xingang port |
Payment | LC at sight, TT |
HS tariff code | 721610, 721631, 722870 |
Origin | China |
UPN Channel steel | |||||

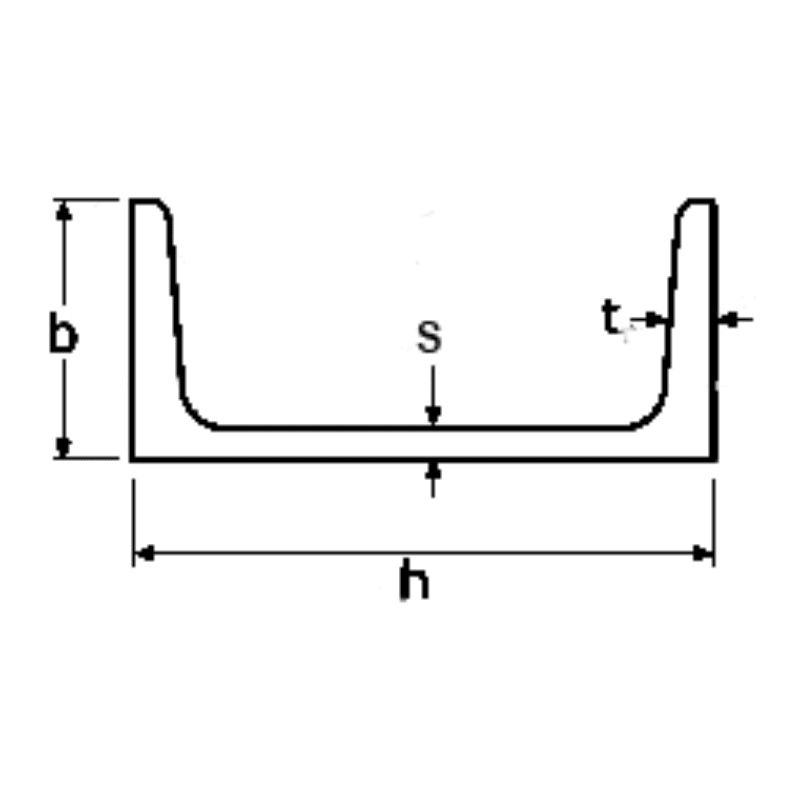

size | h | b | s | t | weight |
mm | mm | mm | mm | mm | (kg/m) |
50×38 | 50 | 38 | 5 | 7 | 5.59 |
60×30 | 60 | 30 | 6 | 6 | 5.07 |
65×42 | 65 | 42 | 5.5 | 7.5 | 7.09 |
80×45 | 80 | 45 | 6 | 8 | 8.64 |
100×50 | 100 | 50 | 6 | 8.5 | 10.60 |
120×55 | 120 | 55 | 7 | 9 | 13.40 |
140×60 | 140 | 60 | 7 | 10 | 16.00 |
160×65 | 160 | 65 | 7.5 | 10.5 | 18.80 |
180×70 | 180 | 70 | 8 | 11 | 22.00 |
200×75 | 200 | 75 | 8.5 | 11.5 | 25.30 |
