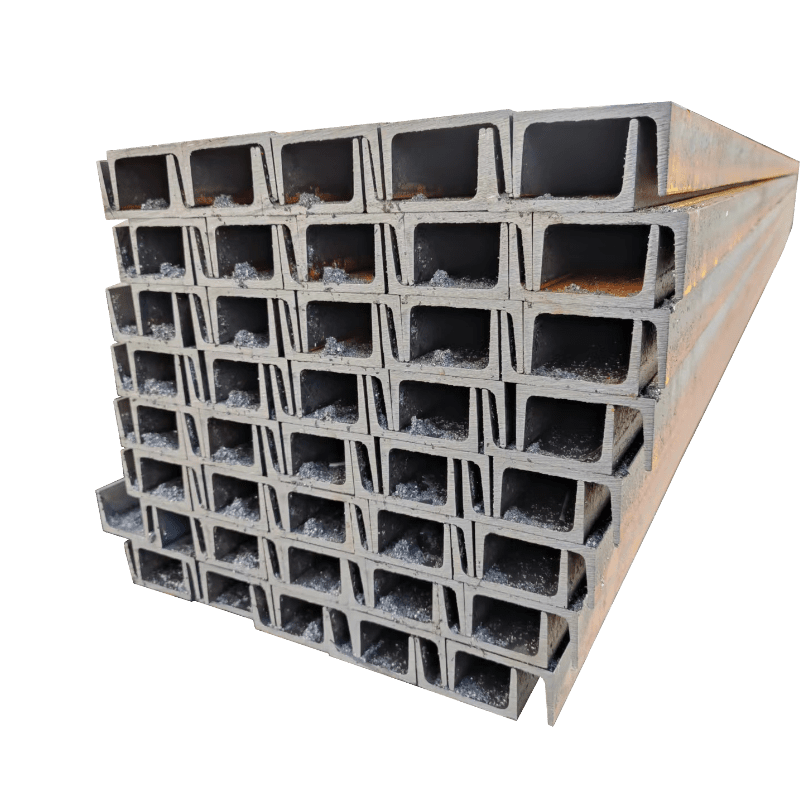

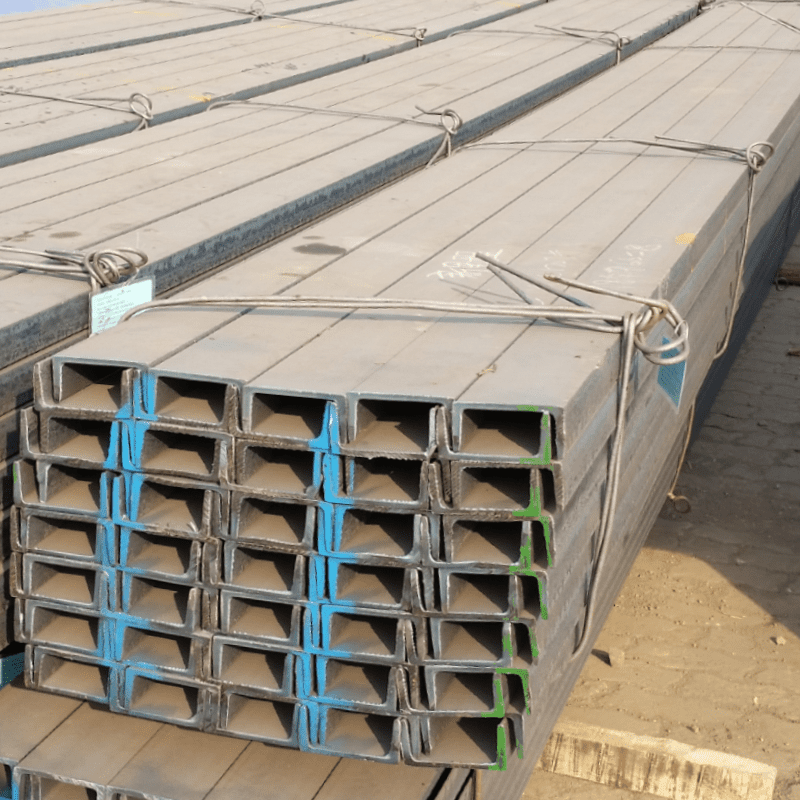

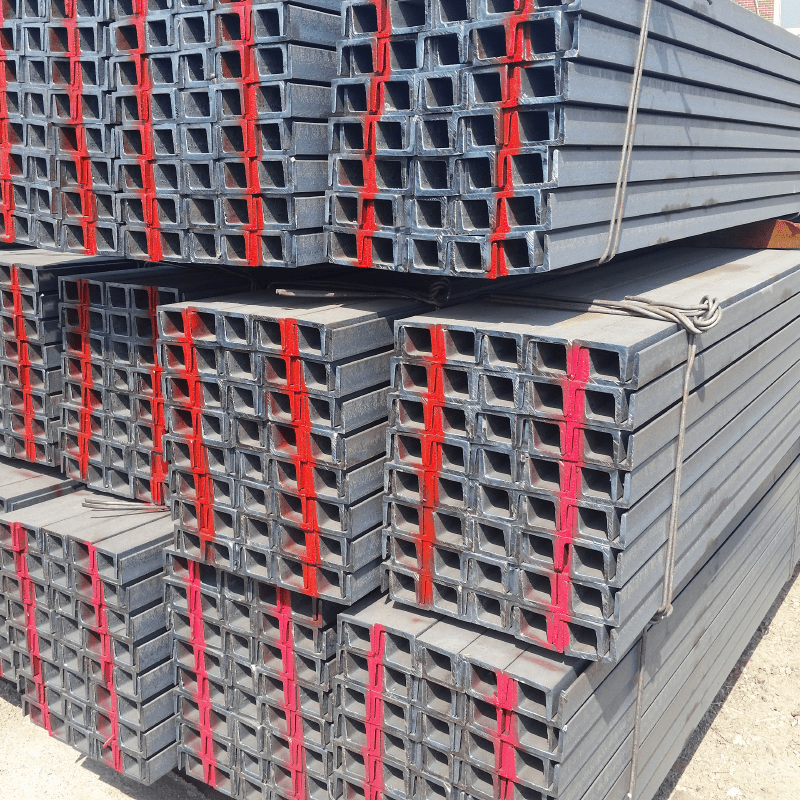

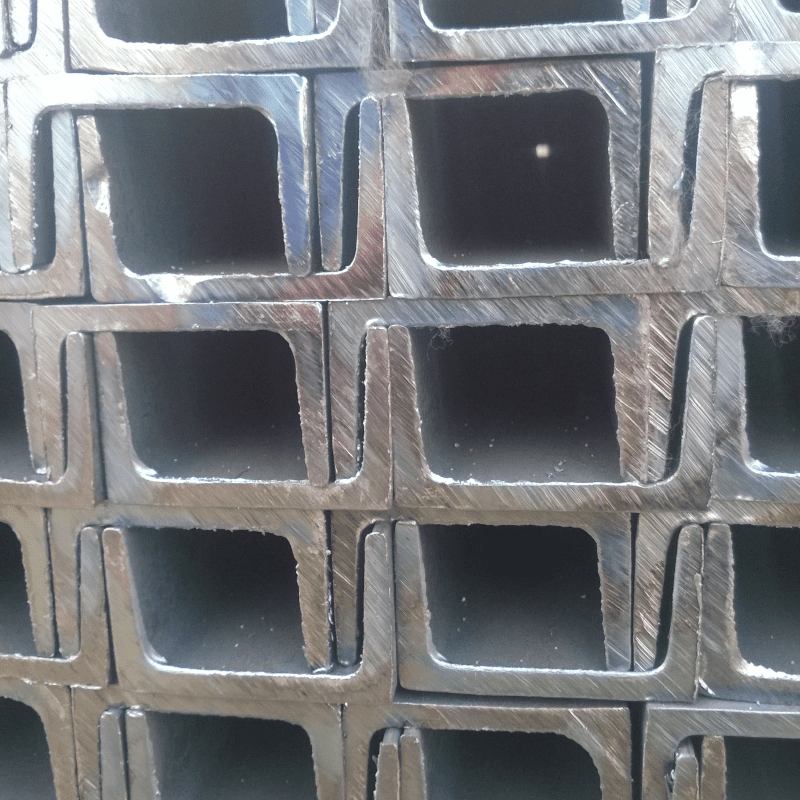

hot rolled steel channel is a U shape section steel widely used in industrial fields, construction, vehicle components, architecture, and bridges.
want steel channel rate today? Here’s a quick and efficient way to get a price list on our site. the material of mild steel is the same as steel angle. it is easy to weld, cut, form, and machine with the proper equipment. popular standard sizes such as 100×50 and 200×75 both have huge export volumes every month.
Grade | A36, Q235, Q355, S235JR, SS400 |
---|---|
weight | Actual, Theoretical |
Tolerance | Max 20% |
Length | 12m, 5.8m, 6m |
Delivery time | 7 days |
Loading port | Xingang port |
Payment | LC at sight, TT |
HS tariff code | 721610, 721631, 722870 |
Origin | China |
GB Channel steel | |||||||||
size | h | b | s | weight | size | h | b | s | weight |
mm | mm | mm | mm | (kg/m) | mm | mm | mm | mm | (kg/m) |
50×37 | 50 | 37 | 4.5 | 5.438 | 250×78 | 250 | 78 | 7 | 27.41 |
63×40 | 63 | 40 | 4.8 | 6.634 | 250×80 | 250 | 80 | 9 | 31.335 |
80×43 | 80 | 43 | 5 | 8.045 | 250×82 | 250 | 82 | 11 | 35.26 |
100×48 | 100 | 48 | 5.3 | 10.007 | 280×82 | 280 | 82 | 7.5 | 31.427 |
120×53 | 120 | 53 | 5.5 | 12.059 | 280×84 | 280 | 84 | 9.5 | 35.823 |
140×58 | 140 | 58 | 6 | 14.535 | 280×86 | 280 | 86 | 11.5 | 40.219 |
140×60 | 140 | 60 | 8 | 16.733 | 320×88 | 320 | 88 | 8 | 38.083 |
160×63 | 160 | 63 | 6.5 | 17.24 | 320×90 | 320 | 90 | 10 | 43.107 |
160×65 | 160 | 65 | 8.5 | 19.754 | 320×92 | 320 | 92 | 12 | 48.131 |
180×68 | 180 | 68 | 7 | 20.174 | 360×96 | 360 | 96 | 9 | 47.814 |
180×70 | 180 | 70 | 9 | 23 | 360×98 | 360 | 98 | 11 | 53.466 |
200×73 | 200 | 73 | 7 | 22.637 | 360×100 | 360 | 100 | 13 | 59.118 |
200×75 | 200 | 75 | 9 | 25.777 | 400×100 | 400 | 100 | 10 | 58.928 |
220×77 | 220 | 77 | 7 | 24.999 | 400×102 | 400 | 102 | 12.5 | 65.208 |
220×79 | 220 | 79 | 9 | 28.453 | 400×104 | 400 | 104 | 14.5 | 71.488 |
