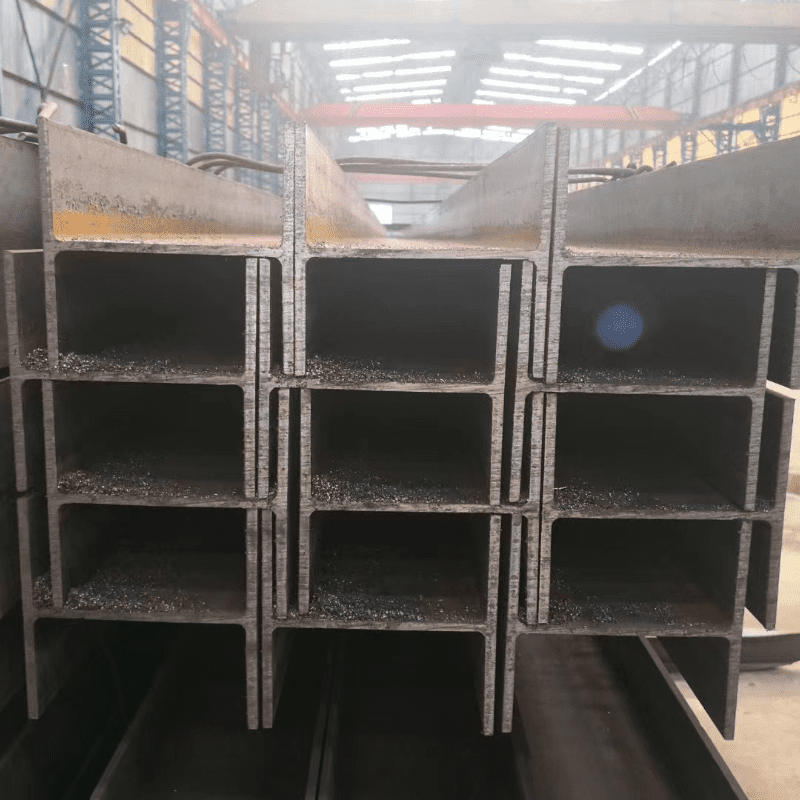

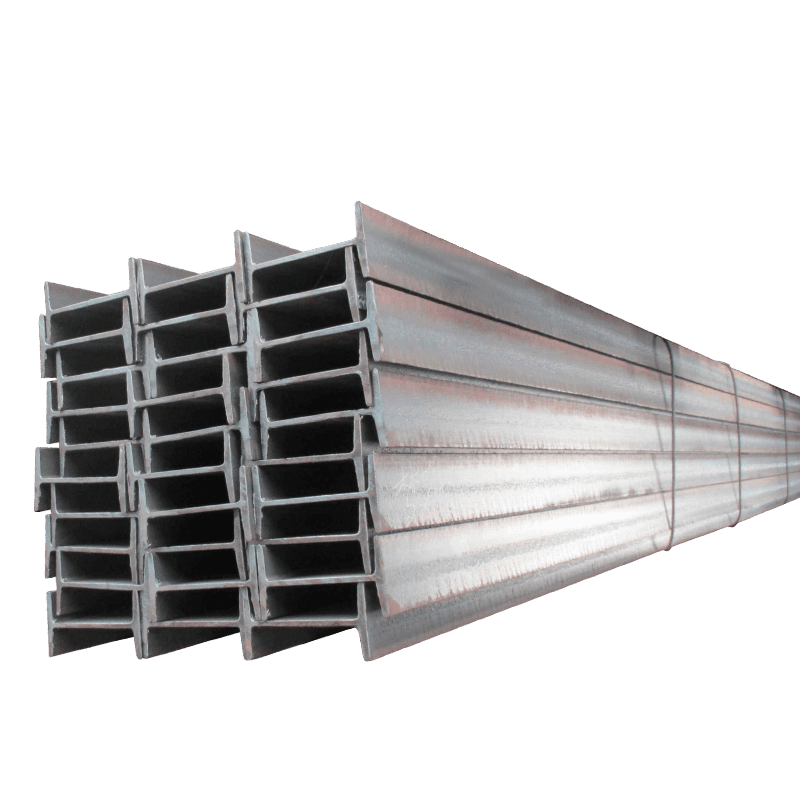

hot rolled h section beam is an h type of steel widely used in construction, industrial fields, mechanical structure materials, vehicle components, architecture, Steel Fabricators and bridges.
want steel channel rate today? Here’s a quick and efficient way to get a price on our site. the material of mild steel is the same as steel angle. it is easy to weld, cut, form, and machine with the proper equipment.
popular standard sizes such as 100/150/200/300 have huge export volumes every month.
Grade | A36, Q235, Q355, S235JR, SS400 |
---|---|
weight | Actual, Theoretical |
Tolerance | Max 20% |
Length | 12m, 5.8m, 6m |
Delivery time | 15 days |

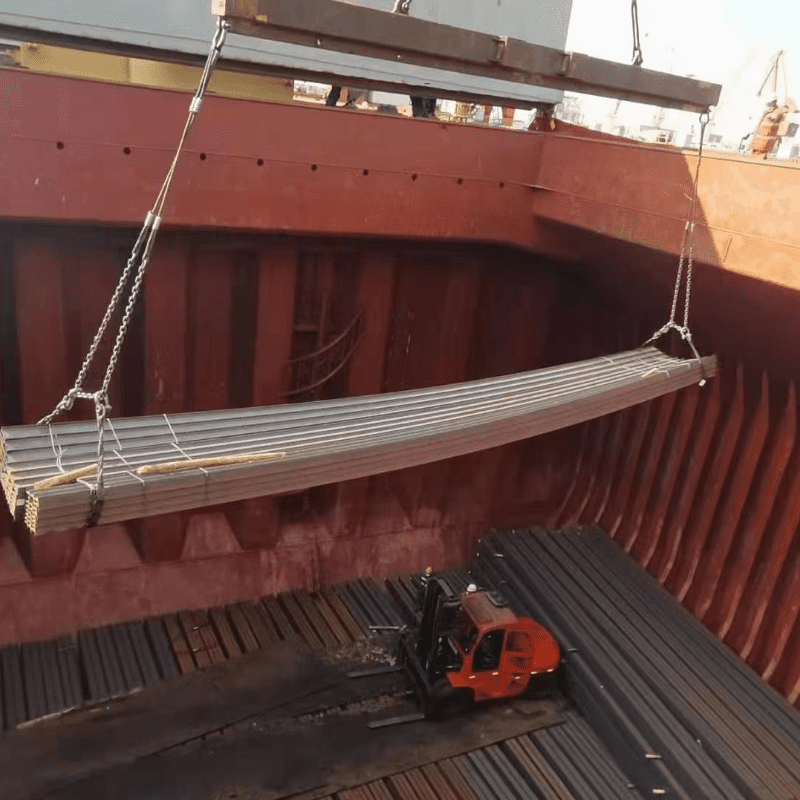

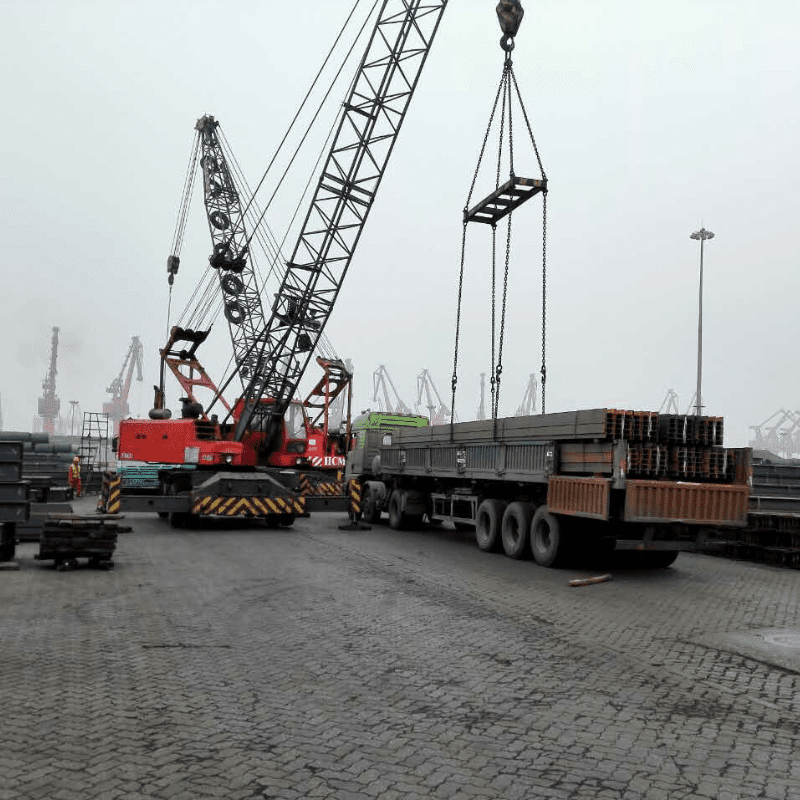

Loading port | Jingtang port, Xingang port |
Payment | LC at sight, TT |
HS tariff code | 721610, 721633, 722870 |
Origin | China |
hot rolled H beam size list | |||||||||
h x b | s | t | JIS | GB | h x b | s | t | JIS | GB |
(mm) | (mm) | (mm) | (kg/m) | (kg/m) | (mm) | (mm) | (mm) | (kg/m) | (kg/m) |
100×100 | 6 | 8 | 16.9 | 17.2 | 394×398 | 11 | 18 | 147 | 147 |
125×125 | 6.5 | 9 | 23.6 | 23.8 | 400×400 | 13 | 21 | 172 | 172 |
150×75 | 5 | 7 | 14 | 14.3 | 400×408 | 21 | 21 | 197 | 197 |
150×100 | 6 | 9 | 20.7 | 21.4 | 400×150 | 8 | 13 | 55.2 | 55.8 |
150×150 | 7 | 10 | 31.1 | 31.9 | 396×199 | 7 | 11 | 56.1 | 56.7 |
175×90 | 5 | 8 | 18 | 18.2 | 400×200 | 8 | 13 | 65.4 | 66 |
175×175 | 7.5 | 11 | 40.4 | 40.4 | 390×300 | 10 | 16 | 105 | 107 |
198×99 | 4.5 | 7 | 17.8 | 18.5 | 414×405 | 18 | 28 | 232 | 233 |
200×100 | 5.5 | 8 | 20.9 | 21.7 | 428×407 | 20 | 35 | 283 | 284 |
200×150 | 6 | 9 | 29.9 | 31.2 | 450×150 | 9 | 14 | 63.9 | 65.5 |
200×200 | 8 | 12 | 49.9 | 50.5 | 446×199 | 8 | 12 | 65.1 | 66.7 |
200×204 | 12 | 12 | 56.2 | 56.7 | 450×200 | 9 | 14 | 77.9 | 79.5 |
248×124 | 5 | 8 | 25.1 | 25.8 | 450×300 | 11 | 18 | 121 | 124 |
250×125 | 6 | 9 | 29 | 29.7 | 500×150 | 10 | 16 | 75.6 | 77.1 |
244×175 | 7 | 11 | 43.6 | 44.1 | 496×199 | 9 | 14 | 77.9 | 79.5 |
250×250 | 9 | 14 | 71.8 | 72.4 | 500×200 | 10 | 16 | 88.2 | 89.6 |
250×255 | 14 | 14 | 81.6 | 82.2 | 506×201 | 11 | 19 | 102 | 103 |
298×149 | 5.5 | 8 | 32 | 32.6 | 482×300 | 11 | 15 | 111 | 115 |
300×150 | 6.5 | 9 | 36.7 | 37.3 | 488×300 | 11 | 18 | 125 | 129 |
294×200 | 8 | 12 | 55.8 | 57.3 | 596×199 | 10 | 15 | 92.5 | 95.1 |
294×302 | 12 | 12 | 83.4 | 85 | 600×200 | 11 | 17 | 103.4 | 106 |
300×300 | 10 | 15 | 93 | 94.5 | 606×201 | 12 | 20 | 118 | 120 |
300×305 | 15 | 15 | 105 | 106 | 582×300 | 12 | 17 | 133 | 137 |
346×174 | 6 | 9 | 41.2 | 41.8 | 588×300 | 12 | 20 | 147 | 151 |
350×175 | 7 | 11 | 49.4 | 50 | 594×302 | 14 | 23 | 170 | 175 |
350×250 | 9 | 14 | 78.1 | 79.7 | 692×300 | 13 | 20 | 163 | 166 |
344×348 | 10 | 16 | 113 | 115 | 700×300 | 13 | 24 | 182 | 185 |
350×350 | 12 | 19 | 135 | 137 | 800×300 | 14 | 26 | 207 | 210 |
388×402 | 15 | 15 | 140 | 141 | 900×300 | 16 | 28 | 240.1 | 243 |
