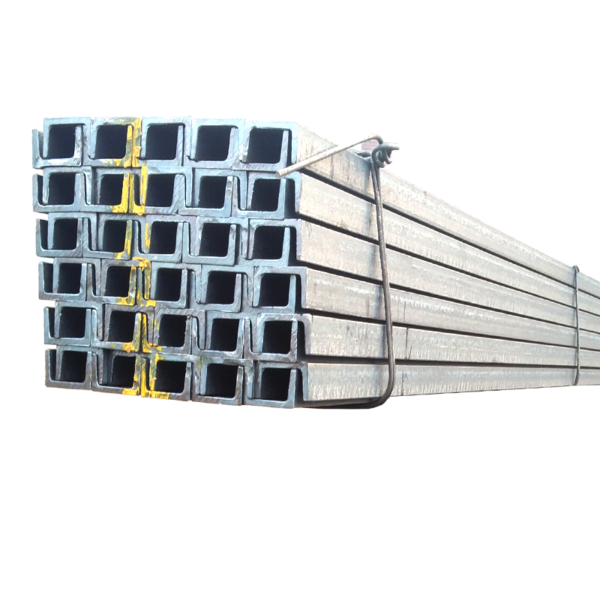

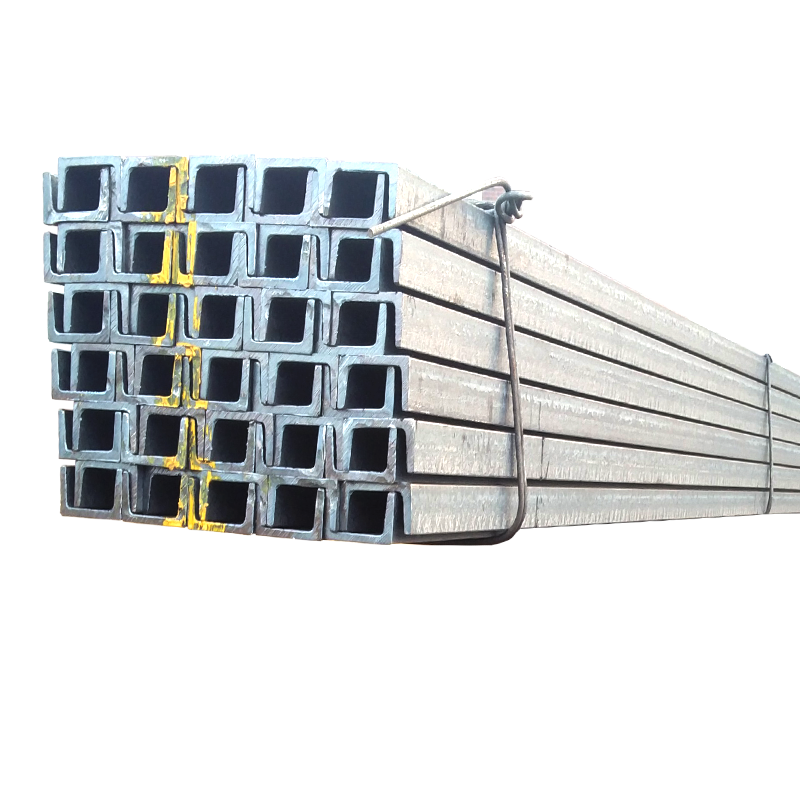

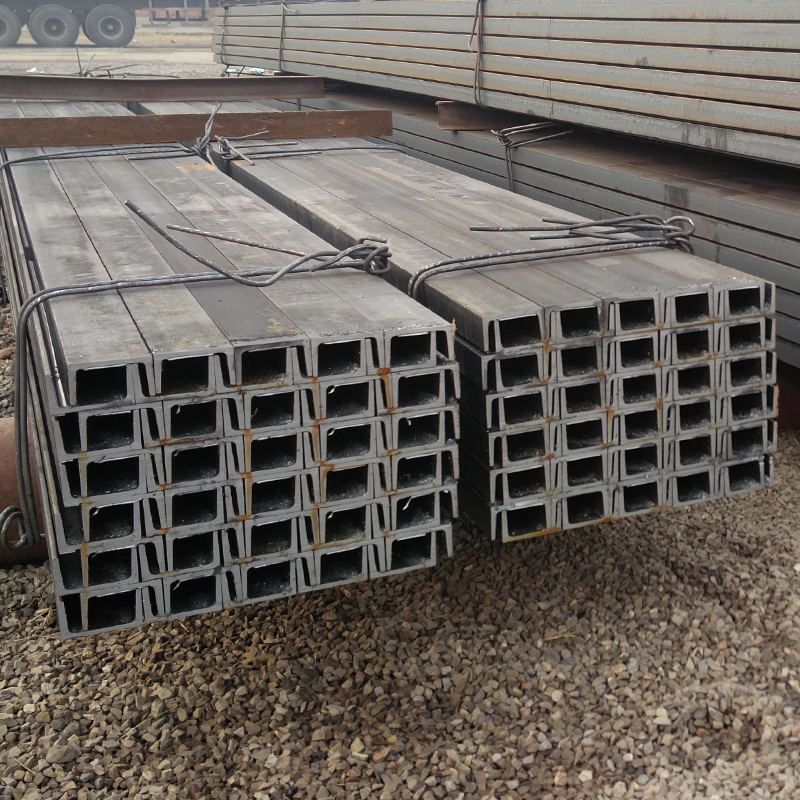

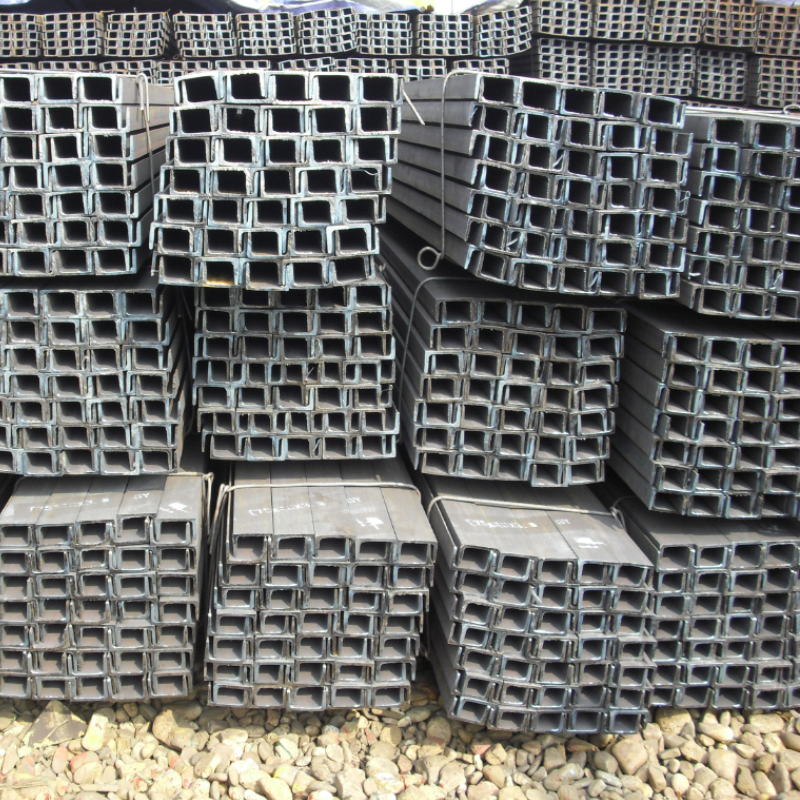

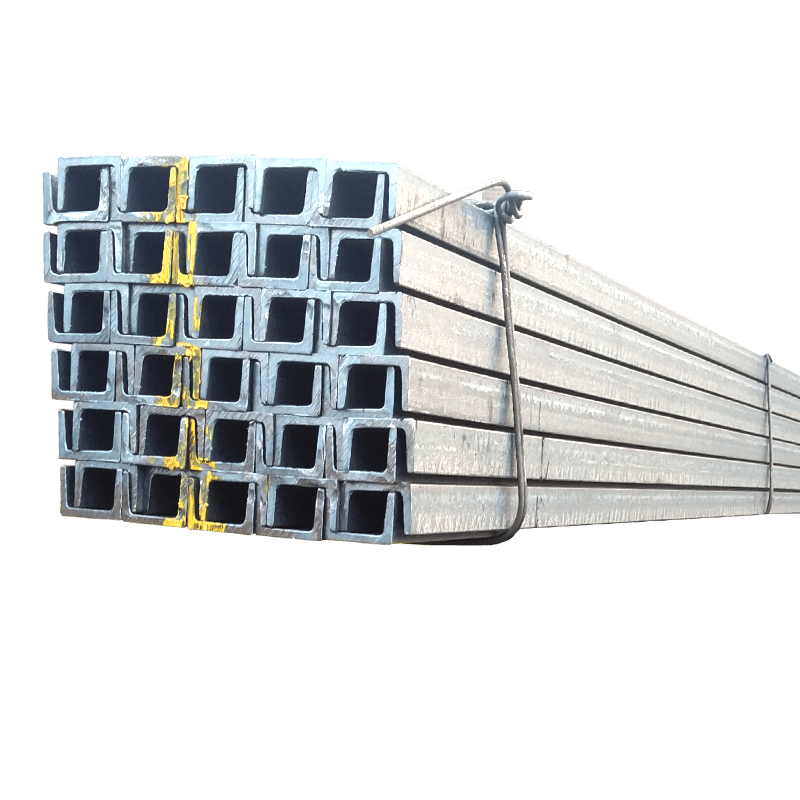

JIS G 3192 Dimensions on 75x40mm, 100x50mm, 125x65mm, and 150x75mm with different thicknesses between 3.8mm and 9mm. this steel channel is used in industrial machinery manufacturing, vehicles, Steel Fabricators, construction, automobiles, civil engineering work structures SS400 grade of mild steel is easy to weld, cut, form, and machine with equipment.
Grade | A36, Q235, Q355, S235JR, SS400 |
---|---|
weight | Actual, Theoretical |
Tolerance | Max 20% |
Length | 12m, 5.8m, 6m |
Delivery time | 7 days |

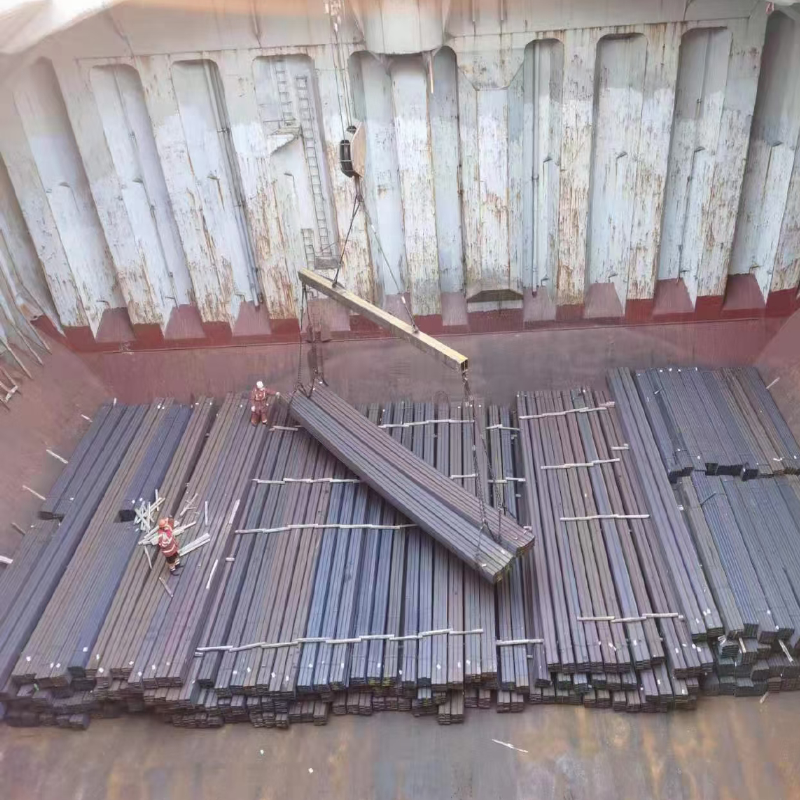

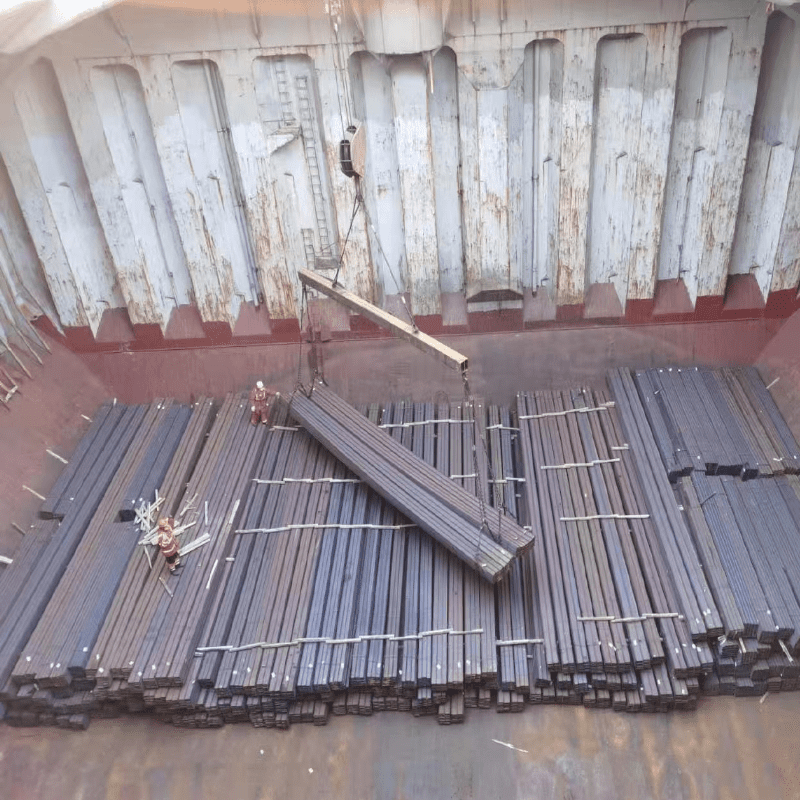

Loading port | Xingang port |
Payment | LC at sight, TT |
HS tariff code | 721610, 721631, 722870 |
Origin | China |
JIS steel channel | |||||
size | h | b | s | t | weight |
mm | mm | mm | mm | mm | (kg/m) |
75×40 | 75 | 40 | 3.8 | 7 | 5.3 |
75×40 | 75 | 40 | 4 | 7 | 5.6 |
75×40 | 75 | 40 | 4.5 | 7 | 5.85 |
75×40 | 75 | 40 | 5 | 7 | 6.92 |
100×50 | 100 | 50 | 3.8 | 6 | 7.3 |
100×50 | 100 | 50 | 4.2 | 6 | 8.03 |
100×50 | 100 | 50 | 4.5 | 7.5 | 8.97 |
100×50 | 100 | 50 | 5 | 7.5 | 9.36 |
125×65 | 125 | 65 | 5.2 | 6.8 | 11.66 |
125×65 | 125 | 65 | 5.3 | 6.8 | 12.17 |
125×65 | 125 | 65 | 5.5 | 8 | 12.91 |
125×65 | 125 | 65 | 6 | 8 | 13.4 |
150×75 | 150 | 75 | 5.5 | 7.3 | 14.66 |
150×75 | 150 | 75 | 5.7 | 10 | 16.71 |
150×75 | 150 | 75 | 6 | 10 | 17.9 |
150×75 | 150 | 75 | 6.5 | 10 | 18.6 |
150×75 | 150 | 75 | 9 | 12.5 | 24 |
